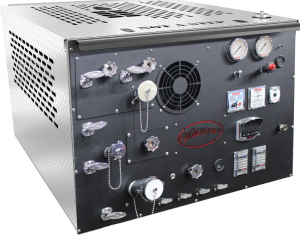

Our slide-in, portable modular compressed air foam 100-50-DS unit is designed and constructed to simultaneously discharge water, foam solution or compressed air foam, developing 80 GPM of water at 125 PSIg (300 L/min. @ 8.6 bar) and 40 CFM of air at 125 PSIg (1.13 m3/min @ 8.6 bar). The 100-50-DS also features compressed air for pneumatic tools and can pump water or air independently.
Specifications
- Deutz 29.9 HP (22.4 kW) diesel-fueled engine
- Waterous CPD-2 Pump
- GHH Rand 50 sCFM compressor
- Stainless Steel Frame
- Aquis 1.5 Foam Proportioner
- Rotary Dial Foam Proportioning Rate Panel
- Optional Operator Interface Terminal (OIT) for selecting foam proportioning rates
| 100-50-DS FLOW | |
|---|---|
| GPM | 100 |
| l/min | 400 |
| l/sec | 6.5 |
| SCFM | 50 |
| M3/min | 1.42 |
| 100-50-DS PRESSURE | ||||
|---|---|---|---|---|
| PSI | Bar | kPa | MPa | |
| Water | 100 | 6.9 | 690 | .69 |
| Air | 125 | 8.6 | 860 | .86 |
